RFID Writers: How RFID Readers Write and Encode Tags Efficiently

When companies start working with RFID, they often search for a dedicated RFID writer. The goal is usually simple: write data to RFID tags so the tags can identify products, assets, cartons, tools, or inventory items in a digital tracking system.

In real RFID projects, however, the term “RFID writer” can be confusing. Many modern RFID readers are not only readers. They can also write data to compatible RFID tags. This means an RFID reader may also function as an RFID writer, depending on the tag type, reader capability, software, and encoding workflow.

This guide explains what an RFID writer is, how RFID readers write to tags, when to use handheld, desktop, USB, or fixed reader-writers, and when an RFID printer encoder is the better choice for high-volume label encoding.

What Is an RFID Writer?

An RFID writer is a device used to write, encode, update, or program data into an RFID tag. During the writing process, the device communicates with the tag wirelessly and stores data in the tag’s memory.

Depending on the application, an RFID writer may be used to write:

• EPC data
• asset ID
• product ID
• serial number
• location code
• batch or lot number
• access control data
• user memory data
• application-specific identifier

In many systems, the RFID writer is not a separate product category. It is often a function built into an RFID reader. This is why the terms RFID reader, RFID writer, and RFID reader-writer are often used together.

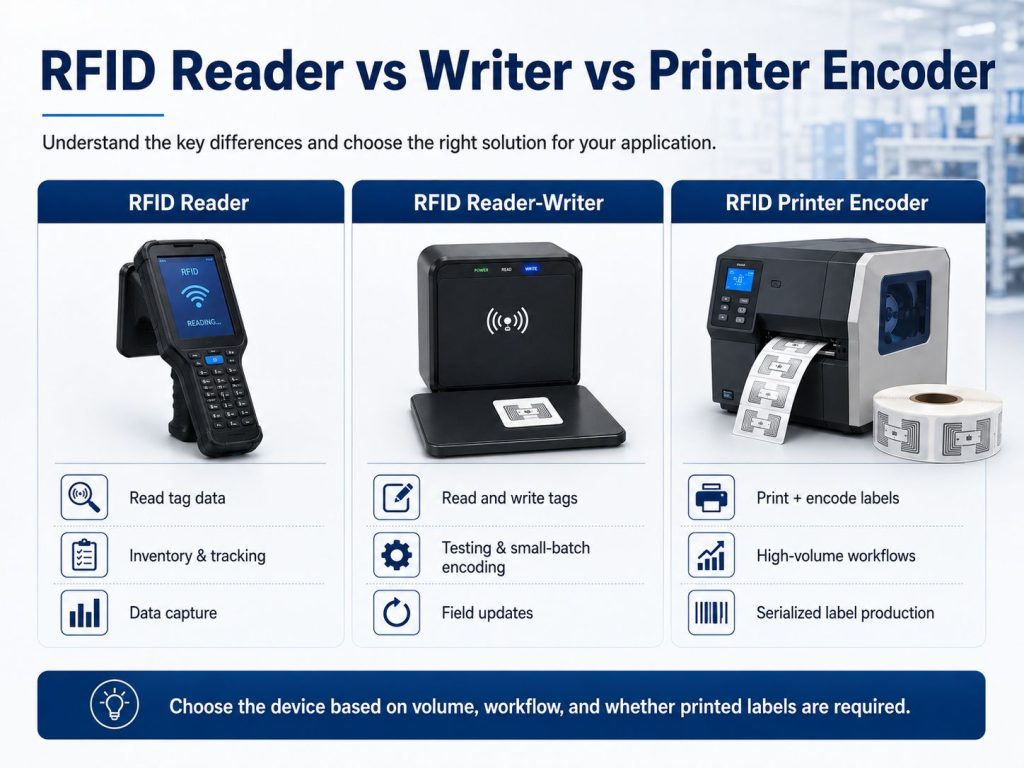

RFID Reader vs RFID Writer vs RFID Printer Encoder

Understanding the difference between these devices helps avoid confusion during project planning.

Device Type	Main Function	Best Use
RFID reader	Reads data from RFID tags	Inventory, asset tracking, access control, data capture
RFID writer	Writes or updates data to RFID tags	Encoding, testing, tag setup, ID assignment
RFID reader-writer	Reads and writes RFID tags	Low-volume encoding, verification, maintenance, field updates
RFID printer encoder	Prints labels and encodes RFID chips at the same time	High-volume RFID label production

In many cases, an RFID reader-writer is enough for testing, small-batch encoding, and tag maintenance. For large-scale RFID label creation, an RFID printer encoder is usually more efficient.

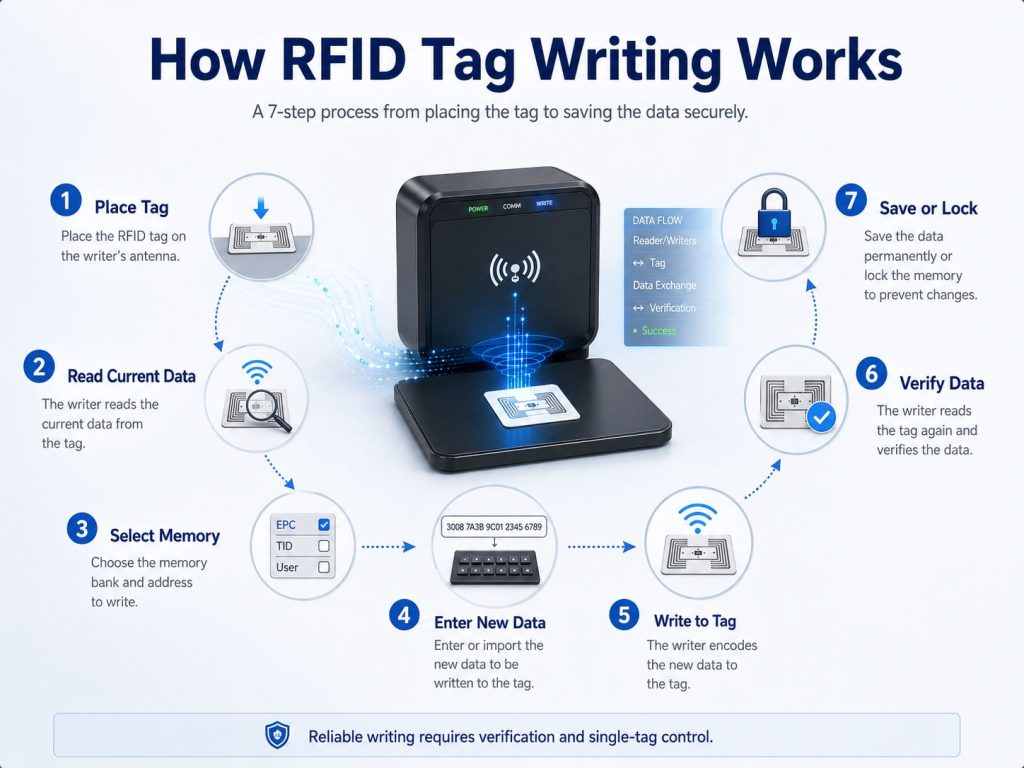

How RFID Tag Writing Works

RFID writing is the process of sending data from a reader-writer to the RFID tag’s chip. The device uses radio frequency communication to access the tag and write data into the correct memory area.

A basic RFID writing workflow includes:

1. Place the RFID tag within the writer’s read/write field
2. Read the current tag data
3. Select the target memory area
4. Enter or import the new data
5. Write the data to the tag
6. Verify the written data
7. Lock or protect memory if required
8. Save the result in software or a database

The writing process must be controlled carefully. If multiple tags are inside the read/write zone, the system may write to the wrong tag, fail the operation, or create duplicate records.

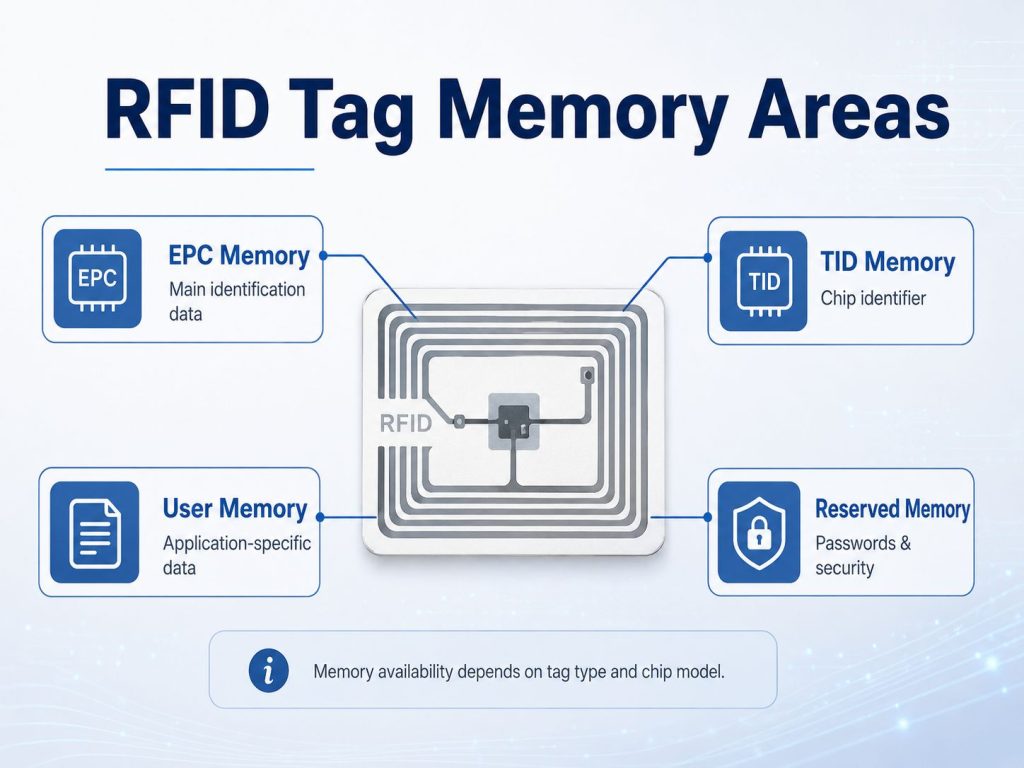

What Data Can Be Written to an RFID Tag?

The answer depends on the RFID tag type and memory structure. In UHF RFID systems, tags commonly include several memory areas.

EPC Memory

EPC memory is commonly used as the main identification area for supply chain, inventory, logistics, and asset tracking applications.

It may store:

• unique item ID
• serialized product code
• carton ID
• pallet ID
• asset ID
• tracking number

For many RFID deployments, EPC memory is the most important field because it is often the data read during normal operations.

TID Memory

TID stands for Tag Identifier. This memory is usually programmed by the chip manufacturer and is commonly used to identify the chip or tag itself.

In many applications, TID memory is useful for authentication, anti-counterfeiting, or confirming that the physical RFID chip is genuine. It is usually not the main area used for business data encoding.

User Memory

Some RFID tags include user memory. This area can store additional application-specific information.

User memory may be used for:

• maintenance data
• batch information
• product attributes
• service history
• configuration data
• application-specific codes

Not all tags include user memory. If the application requires additional data storage on the tag, user memory should be confirmed before selecting the tag.

Reserved Memory

Reserved memory may include access passwords or kill passwords. These functions are used for tag security, access control, or special workflows.

Because password functions can affect tag operation, they should be handled carefully and documented properly.

When to Use an RFID Reader as a Writer

An RFID reader-writer is useful when the encoding volume is low or when controlled individual tag writing is required.

Testing and RFID Project Setup

During pilot testing, engineers may use an RFID reader-writer to encode sample tags, verify tag memory, test read performance, and confirm software rules.

This is useful before mass deployment because it allows teams to test:

• tag memory
• EPC format
• read/write distance
• software workflow
• reader configuration
• antenna placement
• data verification

Asset Tag Encoding

For asset tracking projects, companies may need to encode a unique asset ID into each RFID tag before attaching it to equipment, tools, machines, or IT assets.

A reader-writer can work well when:

• the number of tags is limited
• tags are encoded one by one
• printed label output is not required
• the asset ID already exists in a database
• the operator needs to verify each tag manually

For more complex asset tracking projects, RFID hardware should be selected together with the complete RFID products used in the system.

Field Updates and Maintenance

RFID reader-writers can also be used to update tags in the field. This may be useful when a tag needs a changed location code, updated status, or new application data.

Field writing should be handled carefully because uncontrolled writing can create inconsistent records. A good process should include verification and software logging.

Small-Batch Encoding

For small production batches, lab testing, internal labeling, or low-volume projects, a desktop or USB RFID reader-writer may be more practical than an RFID printer encoder.

The main advantages are:

• lower setup complexity
• controlled single-tag writing
• easy connection to software
• suitable for testing and verification
• useful for engineering and quality control

Why Single-Tag Writing Matters

RFID reading often works well with multiple tags in the read zone. RFID writing is different.

When writing data, the system should usually write to one target tag at a time. If several writable tags are present in the read/write field, the system may:

• write data to the wrong tag
• fail to complete the write operation
• create duplicate IDs
• generate a write error
• cause database mismatch
• reduce data integrity

This is why controlled read zones are essential during RFID tag writing.

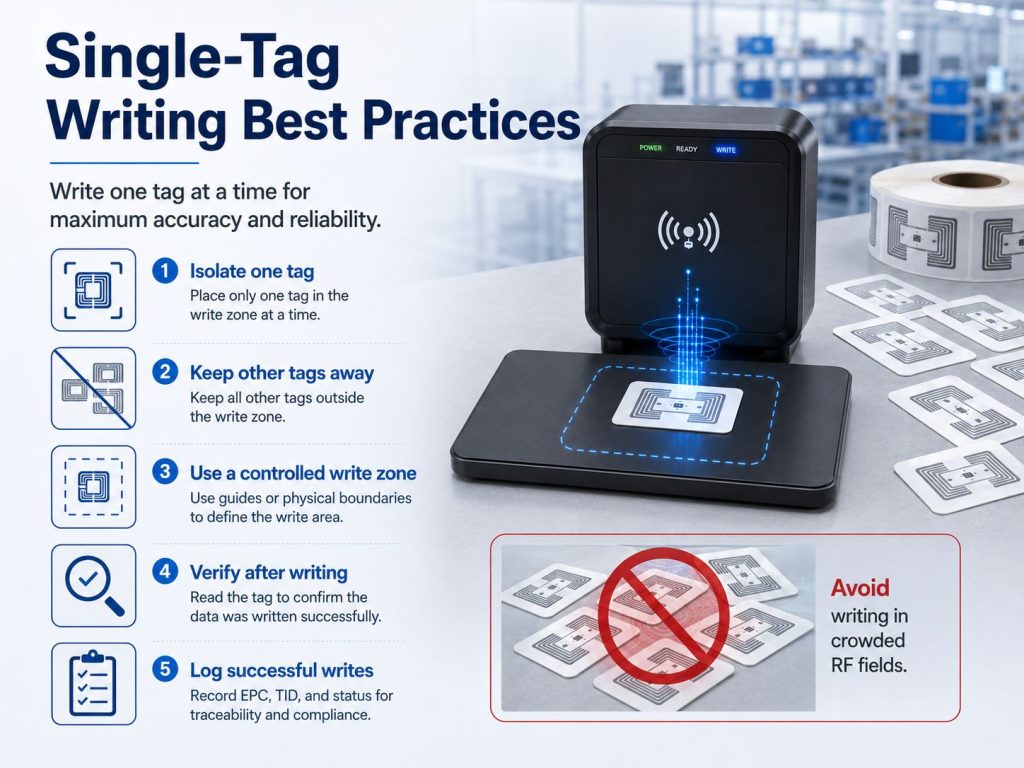

Best Practices for Single-Tag Writing

To improve encoding accuracy, follow these practices:

• isolate one tag during writing
• use a small and controlled read/write zone
• keep other tags away from the encoding area
• use desktop or USB reader-writers for close-range encoding
• verify tag data after writing
• log successful and failed writes
• avoid writing tags in a large uncontrolled RF field
• use shielding or physical separation if needed

For projects where read-zone boundaries are difficult to control, antenna selection and RF field design are important. You can also review our guide on how to select the right RFID antenna when planning controlled read and write areas.

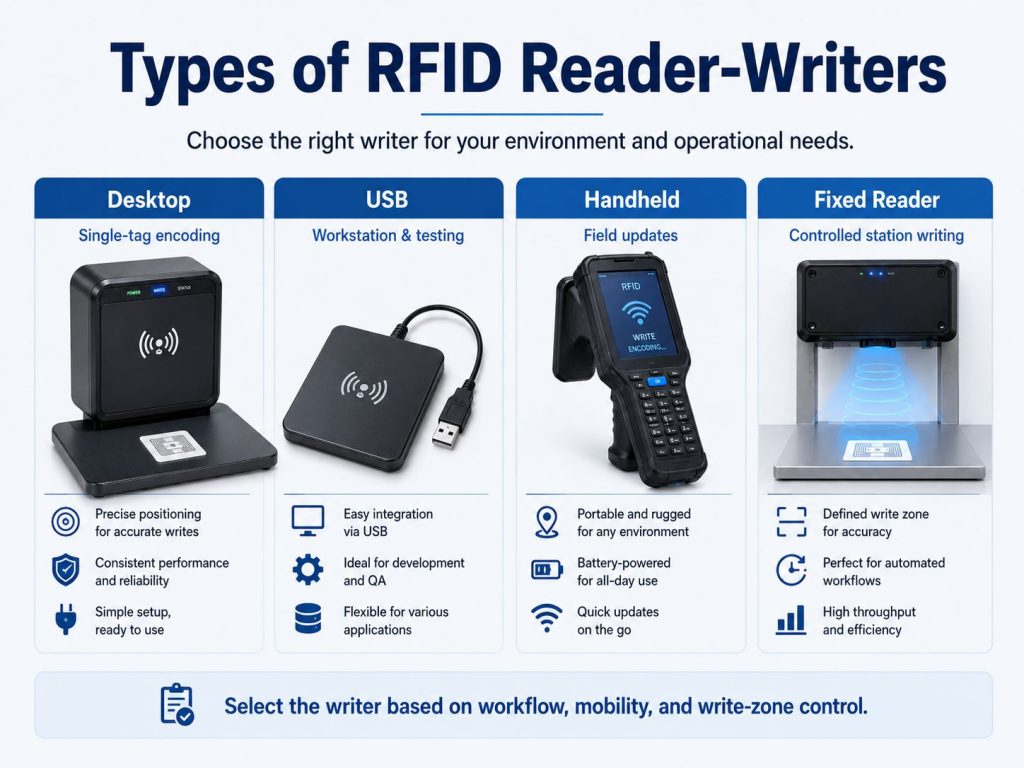

Types of RFID Reader-Writers

Different reader-writer types are suitable for different workflows.

Desktop RFID Reader-Writers

Desktop reader-writers are commonly used for controlled tag encoding at a workstation.

Best for:

• single-tag encoding
• access card setup
• asset tag preparation
• engineering testing
• small-batch tag programming
• quality control checks

Advantages:

• compact design
• controlled read range
• easy software integration
• suitable for close-range encoding
• lower false-write risk

Desktop reader-writers are often preferred when accuracy is more important than speed.

USB RFID Reader-Writers

USB reader-writers connect directly to a computer and are useful for simple encoding workflows.

Best for:

• office-based encoding
• software testing
• small tag batches
• sample validation
• database-linked ID writing

Advantages:

• easy computer connection
• suitable for workstation use
• simple operation
• good for controlled environments

USB reader-writers are often used in pilot projects, quality inspection, and software development.

Handheld RFID Reader-Writers

Many handheld RFID readers can also write data to compatible tags. This makes them useful for field operations.

Best for:

• mobile asset updates
• field inspections
• maintenance workflows
• inventory correction
• tag verification
• remote site operations

Advantages:

• portable
• useful in the field
• can read and write near assets
• supports mobile workflows

Limitations:

• harder to control the read/write zone
• risk of nearby tag interference
• less efficient for large batches
• operator training is important

Handheld writing should be used carefully when many tags are close together.

Fixed RFID Readers as Writers

Fixed RFID readers are usually installed for automated reading, but some can also write data to tags.

Possible uses:

• production station encoding
• process-controlled tag updates
• automated verification
• special manufacturing workflows
• controlled gate or station writing

However, fixed readers are not always the best choice for tag writing. Since they often have larger read zones, they require careful antenna placement, power control, and shielding to prevent unintended writing.

For fixed installations, cable and connector quality can also affect system reliability. Review RFID cables, connectors, and adapters when planning reader-to-antenna connections.

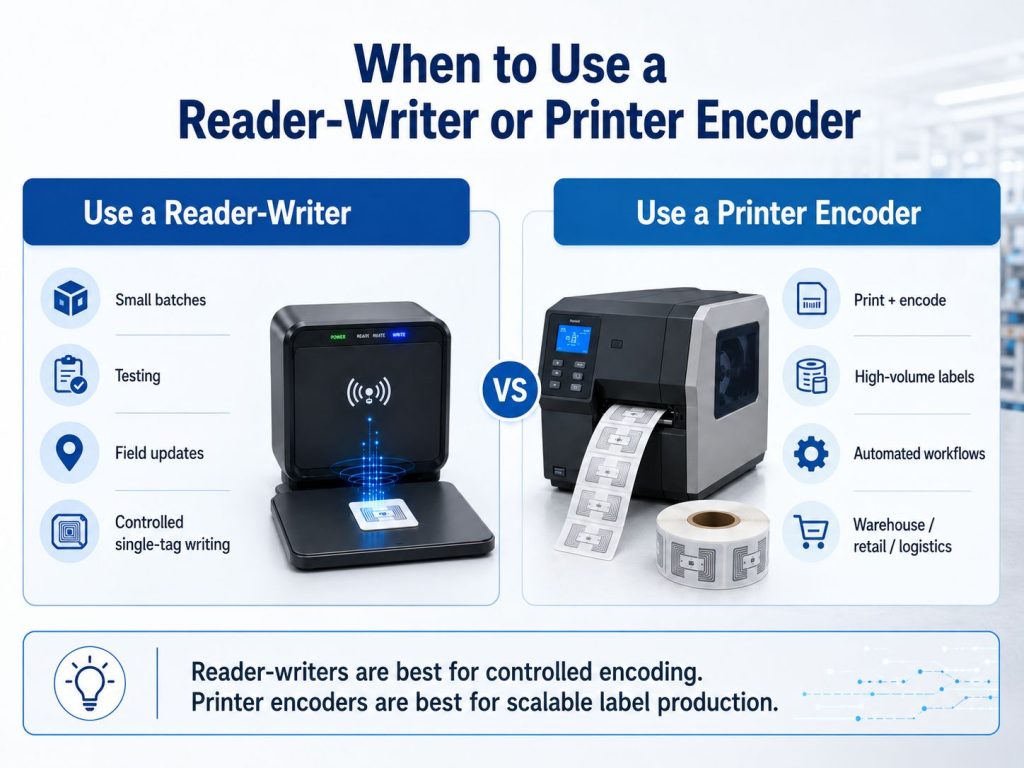

When to Use an RFID Printer Encoder Instead

If the goal is to encode many RFID labels or tags quickly and consistently, an RFID printer encoder is usually the better choice.

An RFID printer encoder can:

• print visible text
• print barcode or QR code
• encode RFID chip data
• verify encoded tags
• reject failed labels
• support serialized label production
• connect with label design software
• support warehouse, retail, and logistics workflows

This is especially important when the printed label and encoded RFID data must match.

For example, a carton label may show a barcode and text on the surface while the RFID chip stores the corresponding EPC. If the printed data and encoded data do not match, the label can create operational problems.

For high-volume RFID labeling, see our guide on RFID printers and the detailed article on RFID printer encoder and supplies.

RFID Writer vs RFID Printer Encoder

Factor	RFID Reader-Writer	RFID Printer Encoder
Primary use	Read and write RFID tags	Print and encode RFID labels
Best for	Testing, small batches, field updates	High-volume label production
Printed label output	No	Yes
Encoding speed	Lower	Higher
Workflow control	Manual or software-based	Automated print-and-encode workflow
Best tag format	Cards, hard tags, sample labels, assets	Printable RFID labels and tags
Error handling	Depends on software	Often includes print/encode verification
Ideal environment	Workstation, lab, field, maintenance	Warehouse, factory, retail, logistics

A reader-writer is suitable for controlled individual tag writing. A printer encoder is better when the business needs scalable label production.

RFID Writing Software

Hardware alone is not enough. RFID writing requires software to control data entry, encoding rules, verification, and reporting.

RFID writing software may support:

• read current tag data
• write EPC data
• write user memory
• verify written data
• import data from Excel or database
• serialize IDs
• prevent duplicate encoding
• log successful and failed writes
• manage operator permissions
• export encoding reports
• integrate with ERP, WMS, MES, or asset systems

For many businesses, the software workflow determines whether RFID writing is reliable or error-prone.

Data Verification After Writing

Verification is one of the most important steps in RFID writing.

After writing data to a tag, the system should read the tag again and compare the stored value with the expected value.

Verification helps detect:

• failed writes
• wrong data format
• wrong tag selected
• duplicate IDs
• memory access errors
• operator mistakes
• tag defects

For serialized inventory, retail, logistics, manufacturing, and asset tracking, verification is essential to protect data integrity.

Locking and Access Control

Some RFID tags support memory locking or password protection. This can prevent accidental or unauthorized changes after encoding.

Locking may be useful when:

• the EPC should not be changed
• tags are used in compliance workflows
• asset IDs must remain permanent
• supply chain data integrity matters
• unauthorized rewriting must be prevented

However, locking should be used carefully. If a tag is locked incorrectly, it may become difficult or impossible to update later.

Before using lock, kill, or password functions, the workflow should be tested and documented.

RFID Writer Applications

Inventory Management

RFID writers can encode item IDs, carton IDs, pallet IDs, or asset IDs for RFID inventory management. This allows physical goods to connect with digital stock records.

Asset Tracking

Reader-writers can encode asset tags for IT equipment, tools, machines, vehicles, containers, and reusable assets.

Access Control

RFID writers can be used to program cards, badges, or key fobs for controlled access systems.

Manufacturing

In RFID in manufacturing, RFID writing may support WIP tracking, tool control, production station verification, and serialized product identification.

Logistics and Shipping

RFID encoding can support carton labels, pallet labels, shipment tracking, and compliance labels.

Quality Control

Reader-writers can verify whether tags contain the correct data before they enter a production process or warehouse workflow.

How to Choose an RFID Writer

1. Confirm RFID Frequency

The writer must support the same RFID frequency as the tag.

Common RFID frequency categories include:

• LF
• HF / NFC
• UHF / RAIN RFID

A UHF reader-writer cannot write to an HF tag unless it is a multi-frequency device. Always confirm frequency compatibility first.

2. Confirm Tag Memory and Write Capability

Not every tag supports the same memory structure. Some tags have EPC memory only, while others include user memory. Some memory areas may be factory-programmed or locked.

Before writing tags, confirm:

• writable memory area
• memory size
• EPC length
• user memory availability
• access password requirement
• lock status
• tag chip model
• data format

3. Choose the Right Device Type

Select the writer based on your workflow.

Workflow	Recommended Device
Small-batch encoding	Desktop or USB reader-writer
Field updates	Handheld reader-writer
Controlled production station	Fixed reader with controlled antenna setup
High-volume label creation	RFID printer encoder
Printed label + encoded chip	RFID printer encoder
Tag testing and quality control	Desktop, USB, or handheld reader-writer

4. Control the Read/Write Zone

RFID writing needs a controlled RF field. If multiple tags are near the writer, the wrong tag may be encoded.

Consider:

• reader power
• antenna type
• tag distance
• shielding
• physical separation
• tag orientation
• software tag selection
• operator workflow

For difficult environments, RFID shielding and blocking materials can help control unwanted reads or writes.

5. Use Reliable Encoding Software

The software should support the data format and workflow required by the project.

Look for:

• data import
• serialization
• duplicate prevention
• error handling
• verification
• reporting
• database connection
• operator permission control

6. Test Before Deployment

Before full deployment, test the complete writing process with real tags, readers, software, and application data.

Test:

• write success rate
• verification accuracy
• tag memory format
• read range after writing
• duplicate prevention
• lock/password behavior
• workflow speed
• operator usability

Common RFID Writing Mistakes

Writing Tags in an Uncontrolled Read Zone

If multiple tags are present during writing, the system may encode the wrong tag or fail the write operation.

Confusing Read Range with Write Control

A reader that can read tags from a long distance may not be ideal for writing. Writing often requires a smaller and more controlled field.

Choosing a Writer Without Checking Tag Memory

The writer must support the tag’s frequency and memory requirements. The tag must also support the data you need to write.

Skipping Verification

Writing data is not enough. The system should read the tag again and confirm the expected value.

Using Manual Data Entry Without Controls

Manual entry can cause duplicate IDs, wrong EPCs, or format errors. Importing data from a controlled database can reduce mistakes.

Using Reader-Writers for Large-Scale Label Production

A reader-writer may work for small batches, but it is not efficient for thousands of labels. A printer encoder is better for scalable print-and-encode workflows.

Locking Tags Too Early

Locking memory before testing can create avoidable problems. Always confirm data, workflow, and access settings before locking.

Best Practices for RFID Tag Writing

To improve accuracy and reduce errors:

• use one tag at a time for reader-writer encoding
• keep the write zone small and controlled
• verify each tag after writing
• use standardized data formats
• prevent duplicate IDs
• document EPC or user memory structure
• use software logs for traceability
• train operators on the encoding process
• test lock and password functions carefully
• use printer encoders for high-volume label workflows
• test real tags in the real environment before rollout

A reliable RFID writing process depends on the right balance of hardware, software, data rules, and workflow control.

Conclusion

An RFID writer is a device or function used to write data to RFID tags. In many modern RFID systems, the writer function is built into the RFID reader. This means handheld, desktop, USB, and fixed RFID readers may all support tag writing when used with compatible writable tags and proper software.

However, not every reader is equally suitable for every writing workflow. For accurate low-volume encoding, desktop or USB reader-writers provide better control. For field updates, handheld reader-writers can be useful. For large-scale label production, RFID printer encoders are usually the best choice because they print and encode labels in one workflow.

The most important rule is simple: RFID tag writing must be controlled, verified, and matched to the application. A good RFID writing process protects data accuracy, reduces encoding errors, and helps businesses build reliable RFID tracking systems.

FAQ

What is an RFID writer?

An RFID writer is a device or function used to write data to an RFID tag. In many systems, the RFID writer function is built into an RFID reader.

Can RFID readers write tags?

Many RFID readers can write to compatible writable tags. However, writing accuracy depends on the reader type, software, tag memory, and read/write zone control.

Is an RFID writer different from an RFID printer?

Yes. An RFID writer writes data to a tag. An RFID printer encoder prints visible label information and writes RFID data into the chip during the same process.

Can I write multiple RFID tags at the same time?

For most controlled encoding workflows, it is better to write one tag at a time. Multiple tags in the write zone can cause errors or incorrect encoding.

What data can be written to an RFID tag?

Depending on the tag, you may be able to write EPC data, user memory data, asset IDs, product IDs, serial numbers, or application-specific information.

Why should RFID writing be verified?

Verification confirms that the tag was encoded correctly. It helps prevent wrong IDs, failed writes, duplicate tags, and database errors.

When should I use an RFID printer encoder instead of a reader-writer?

Use an RFID printer encoder when you need to print and encode many RFID labels, especially for warehouse, retail, logistics, manufacturing, or compliance labeling.

Can RFID tag memory be locked?

Some RFID tags support memory locking or password protection. This can prevent unauthorized changes, but it should be tested carefully before deployment.

Need Help Choosing RFID Reader-Writers or Tag Encoding Solutions?

Syncotek provides RFID readers, antennas, tags, labels, and system components for inventory management, logistics, manufacturing, asset tracking, retail, and industrial identification applications.

Whether you need a reader-writer for controlled tag encoding, a handheld reader for field updates, or an RFID printer encoder for high-volume label production, Syncotek can help you evaluate a suitable RFID setup based on your tag type, memory requirements, read/write distance, software workflow, and deployment environment.
