We build OEM-grade UHF RFID modules covering EPC Gen2 / ISO 18000-63 with 27–33 dBm output, 1–16 antenna ports, and developer-friendly SDKs. Ideal for handhelds, printers, gate readers, industrial lines, kiosks, and vehicle ID.
Need OEM/ODM? We customize interface boards, antenna combos, and firmware to your application.
Ultra-small, low-power UHF module based on Impinj E710/E510/E310. Up to 27 dBm RF output and high inventory speed—ideal for desktop devices and mobile integrations.
Four SMA antenna ports and up to 33 dBm RF output for gates, tunnels, and production lines. Robust anti-collision and self-diagnostics.
Eight SMA ports for multi-zone coverage and fast antenna polling. Up to 33 dBm RF output for dense tag environments.
High-channel-count engine for portals and conveyors. Up to 33 dBm, up to 16 SMA ports, continuous 24×7 operation.
Compact design with up to 33 dBm output, optimized for embedded terminals, printers, and handheld bases.
Low-power design with 30 dBm output and 4 SMA ports; supports sensor tags, RS232/RS485 options, and fast inventory.
Use 4/8/16-port modules to drive multiple antennas for dock doors, retail backrooms, and smart corridors with anti-collision tuning.
Track WIP with high-speed polling and GPIO/RS485 integration to PLCs and stack lights.
Embed compact modules into label printers, kiosks, and desktop encoders; leverage UART/USB baseboards for fast integration.
Long-range reads for lanes with circular/linear polarized antennas and power budgets up to 33 dBm.
Inventory carts, cabinets, and self-check systems using compact modules and local regulatory bands.
Support for temperature/moisture sensor tags (model-dependent) to log conditions during storage and transit.
| Model | Antenna Ports | Max RF Power | Interfaces | Bands / Protocol | Typical Use | Link |
|---|---|---|---|---|---|---|
| SR-MU931S | Ext. antenna (compact) | 27 dBm | — | ETSI / FCC · EPC C1G2 | Desktop, mobile, embedded | Details |

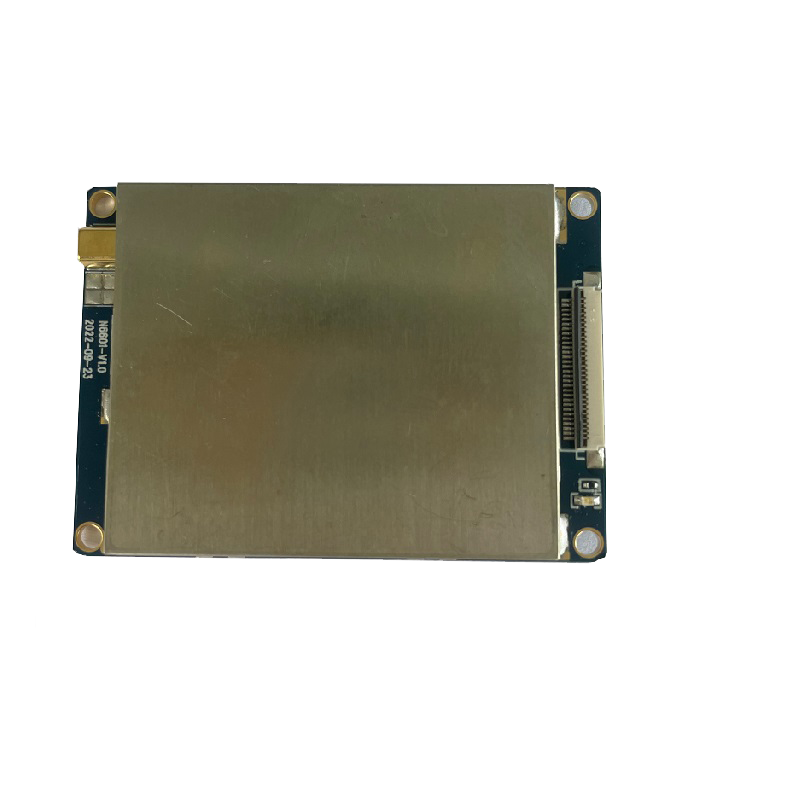

| SR-MU961A | 1× MMCX | 33 dBm | TTL UART (FPC) | ETSI / FCC · EPC C1G2/6B | Printers, terminals, handheld bases | Details |
| SR-MU961B | 4× SMA | 33 dBm | TTL UART | ETSI / FCC · EPC C1G2/6B | Gates, tunnels, lines | Details |

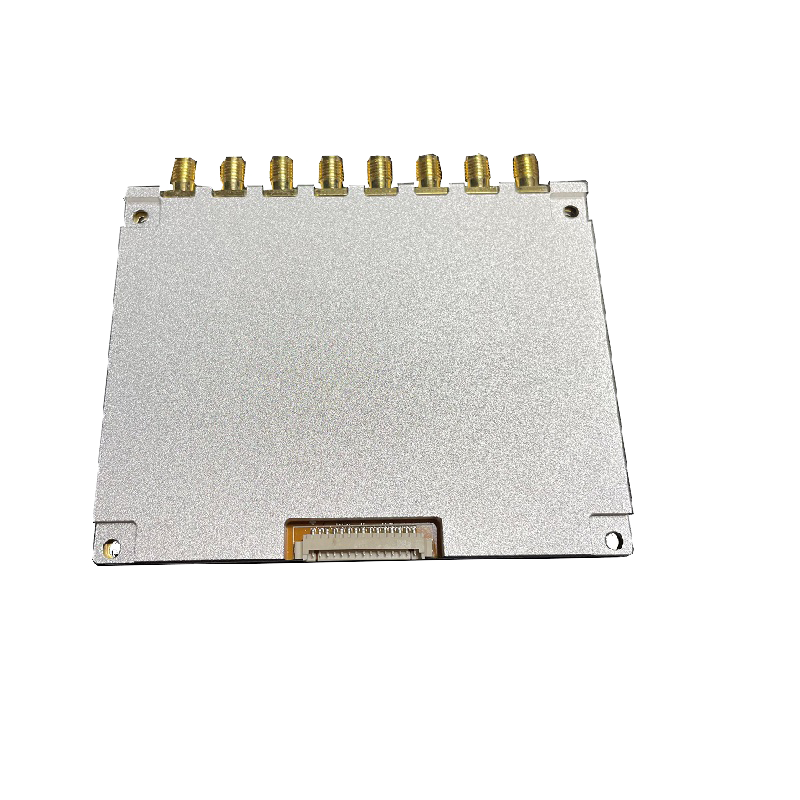

| SR-MU961C | 8× SMA | 33 dBm | TTL UART | ETSI / FCC · EPC C1G2/6B | Multi-zone coverage | Details |

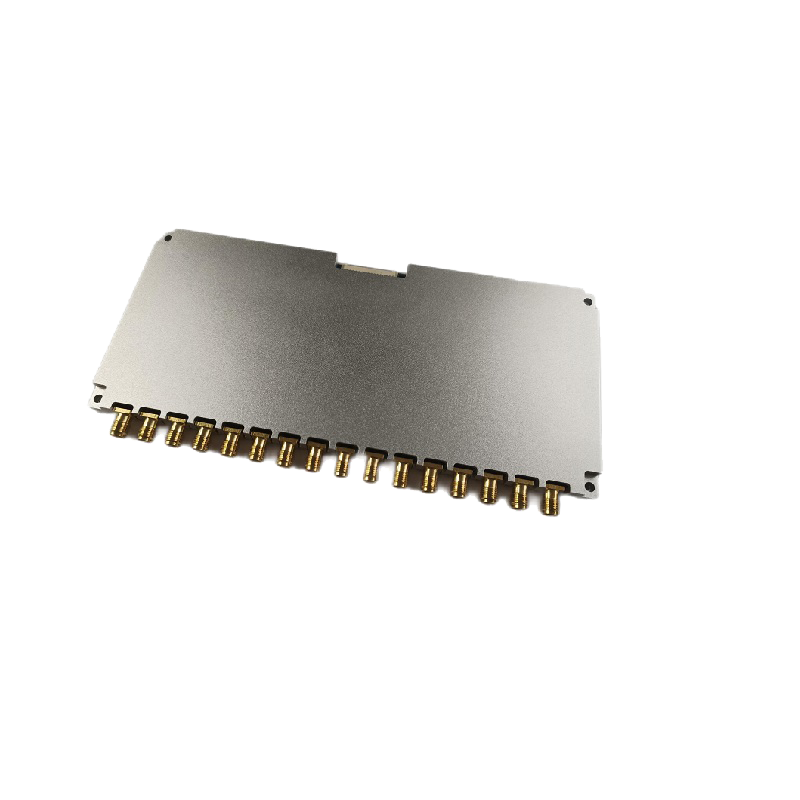

| SR-MU961D | 16× SMA | 33 dBm | TTL UART | ETSI / FCC · EPC C1G2/6B | Portals & conveyors | Details |
| SR-MU922B | 4× SMA | 30 dBm | UART · RS232 · RS485 · 4×GPIO | ETSI / FCC · EPC C1G2 | Long-range, sensor tags | Details |
Share your project details and we’ll respond within 24 hours with pricing, lead time, and integration notes tailored to your kiosk.
Tell us your application and target region (FCC/ETSI/etc.). Our engineers will recommend a complete kit (reader + antennas + tags + cables).
An embedded reader engine that implements EPC Gen2 / ISO 18000-63 in the UHF band (RAIN RFID). It provides RF power, anti-collision, and tag inventory logic for OEM devices.
RAIN is the ecosystem/branding for passive UHF RFID that follows ISO 18000-63 and EPC Gen2. In practice, “UHF RFID” and “RAIN RFID” are used interchangeably for these modules.
Depends on RF power (27–33 dBm), antenna gain/polarization, cable loss, tag sensitivity/orientation, environment, and regional limits. With proper setups, multi-meter reads are typical; long-range setups can reach tens of meters.
UART is common for embedded systems; RS232/RS485 suit industrial retrofits/PLCs. PoE and Ethernet are available via integrated reader designs built around these modules.
Yes—SDKs, demo tools, and integration guides are available per model. Contact us to access the latest packages.
1. Antenna Count & Coverage — pick 1 port for embedded devices, 4–8 for gates/lines, 16 for portals and large zones.
2. RF Power & Region — 27–33 dBm depending on read range; ensure FCC (902–928 MHz) or ETSI (865–868 MHz) compliance.
3. Interfaces — UART for embedded; RS232/RS485 for industrial; PoE possible via reader baseboards.
4. Performance in Dense Scenes — look for anti-collision, fast polling, and tag buffers for high throughput.
5. Thermal & Duty Cycle — check heat dissipation and 24×7 stability requirements.
SDK & Firmware — availability of APIs, samples, and upgrade tools shortens time-to-market.
SR-MU931S → compact embedded terminals, desktop encoders.
SR-MU961A → printers, handheld bases needing single-port 33 dBm.
SR-MU961B → 4-antenna dock door or tunnel readers.
SR-MU961C → 8-antenna multi-zone shelves/backrooms.
SR-MU961D → 16-antenna portals/conveyors.
SR-MU922B → long-range lanes, sensor-tag projects (RS232/RS485).
Engineered for real deployments—backed by predictable lead times, SDKs, and global support.
Typical lead time for standard models
Each unit RF-calibrated and verified
Deployments for logistics, retail, WIP
Warranty options & lifecycle support
Readers, modules, antennas, tags, access gates and handhelds matched for range, region, and environment.
Windows/Linux/Android demos for EPC C1G2 inventory, write/lock, GPIO, RSSI filtering—accelerate integration.
Standard builds ship quickly; agile slots for urgent projects. Flexible MOQ for pilots to volume.
FCC/ETSI bands, duty cycle & EIRP settings, documentation packs for certification.
Antenna gain/beamwidth, cable loss, polarization and read-zone simulation to hit your KPIs.
Long-term supply options, firmware maintenance, and quick RMA handling to keep lines running.
Tell us your antenna count, target read range, and region. We’ll propose a bill of materials (module + antennas + cables) and share pricing, lead time, and SDK links.
