All-in-one UHF integrated readers with built-in 6/10/12 dBi antennas, up to 33 dBm RF power, and developer-friendly SDKs. Optimized for access control, parking, dock-door portals, warehouse & retail backrooms.
OEM/ODM ready — interface boards, firmware, enclosure, and branding customization.
High-performance integrated reader with a built-in 10 dBi antenna, up to 33 dBm RF, PoE/networking, and Wiegand/serial I/O — ideal for access lanes and door checkpoints.
Integrated 10 dBi antenna, PoE support, and multi-protocol stack (TCP/HTTP/UDP/Wiegand). Suited to attendance gates and facility access control.
Built-in 12 dBi circularly polarized antenna for longer gates/lanes. Multi-OS SDKs and PoE simplify deployment at dock doors and parking lots.
Long-range integrated reader (12 dBi) for outdoor lanes and portals. Robust anti-collision and fast polling for dense tag scenes.
Integrated, high-gain antenna for extended gate width. Designed for warehouse portals and retail backroom choke points.
Compact integrated reader with a built-in 6 dBi antenna for shorter zone control and doorway checkpoints; budget-friendly and easy to mount.
Door/gate checkpoints with Wiegand to existing controllers. Audible/visual feedback for user guidance.
Long-range lanes with 10/12 dBi integrated antennas. Consider circular vs. linear polarization per tag orientation.
Dock doors and choke points. Use PoE + RJ45 for clean wiring and remote power management.
Backroom inventory gates; tune RF power and dwell times to reduce stray reads from adjacent zones.
Cabinet/room checkpoints with compact 6 dBi models for tighter fields and clean installations.
Model-dependent support for sensor tags to log temperature/moisture across storage and transit.
| Family (Built-in Antenna) | RF Power | Typical Range* | Interfaces | Power & Network | SDK / OS | Best For |
|---|---|---|---|---|---|---|
| 6 dBi (SR-RU1XG06A01 series) | 30–33 dBm (per model) | Short–mid range (site-dependent) | Wiegand / RS232 / RS485 / RJ45; Wi-Fi/BT/4G optional | DC 12V; PoE (per model) | Windows / Android / Linux | Doorways, compact gates |

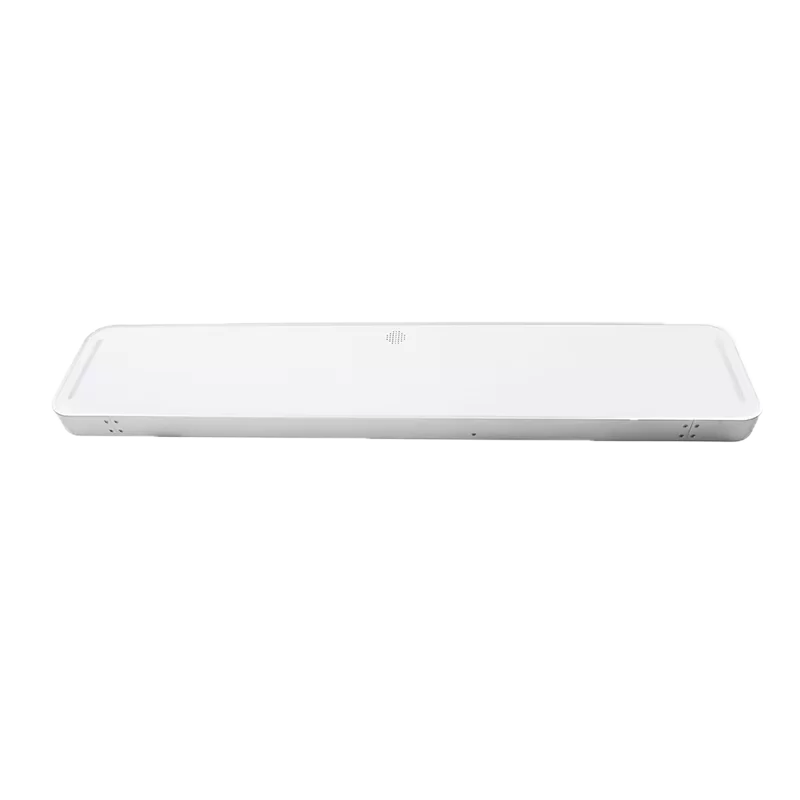

| 10 dBi (SR-RU1XACG10B01/B02) | Up to 33 dBm | Mid–long range (access lanes) | Wiegand / RS232 / RS485 / RJ45; Wi-Fi optional | DC 12V; PoE | Windows / Android / Linux | Attendance gates, facility access |
| 12 dBi (SR-RU1XACG12B01 / SR-RU1XG12B01/C01) | Up to 33 dBm | Long range (wide gates/lanes) | Wiegand / RS232 / RS485 / RJ45; Wi-Fi/BT/4G optional | DC 12V; PoE | Windows / Android / Linux | Dock doors, parking, portals |
Share your project details and we’ll respond within 24 hours with pricing, lead time, and integration notes tailored to your kiosk.
Tell us your application and target region (FCC/ETSI/etc.). Our engineers will recommend a complete kit (reader + antennas + tags + cables).
An all-in-one RAIN (UHF) RFID reader with a built-in directional antenna, simplifying wiring and deployment at doors, lanes, and portals.
Higher-gain antennas (10/12 dBi) focus energy more tightly for longer lane coverage; 6 dBi offers a shorter, wider field for close-in checkpoints.
Ranges vary by RF power, antenna gain, tag sensitivity/orientation, and environment. Integrated 10/12 dBi models typically serve lanes/portals; validate on-site with your tags.
Use Wiegand for access controllers; RS485/RS232 for PLC/industrial; RJ45/PoE for IT networks. Wi-Fi/BT/4G options support special layouts.
Yes — SDKs, example code, and demo tools are available per model to accelerate integration and testing.
A UHF integrated reader is an all-in-one RAIN RFID device that combines the reader engine, RF power amplifier, and a built-in directional antenna in a compact enclosure. Compared with modular or multi-antenna fixed readers, integrated readers excel at single-zone checkpoints like doors, gates, lanes, and station portals, with simpler wiring and faster deployment.
Built-in antenna + PoE + RJ45 = fewer parts, shorter install time, and predictable read zones.
Wiegand/RS232/RS485 and optional Wi-Fi/BT/4G make it easy to retrofit access control, parking, and PLC systems.
Developer kits, demo apps, and multi-OS SDKs shorten integration and validation cycles.
Engineered for real deployments—backed by predictable lead times, SDKs, and global support.
Typical lead time for standard models
Each unit RF-calibrated and verified
Deployments for logistics, retail, WIP
Warranty options & lifecycle support
Readers, modules, antennas, tags, access gates and handhelds matched for range, region, and environment.
Windows/Linux/Android demos for EPC C1G2 inventory, write/lock, GPIO, RSSI filtering—accelerate integration.
Standard builds ship quickly; agile slots for urgent projects. Flexible MOQ for pilots to volume.
FCC/ETSI bands, duty cycle & EIRP settings, documentation packs for certification.
Antenna gain/beamwidth, cable loss, polarization and read-zone simulation to hit your KPIs.
Long-term supply options, firmware maintenance, and quick RMA handling to keep lines running.
Tell us the gate width, target range, and region (FCC/ETSI). We’ll propose a bill of materials, wiring diagram, and deployment tips.
